Marlin Stainless Steel

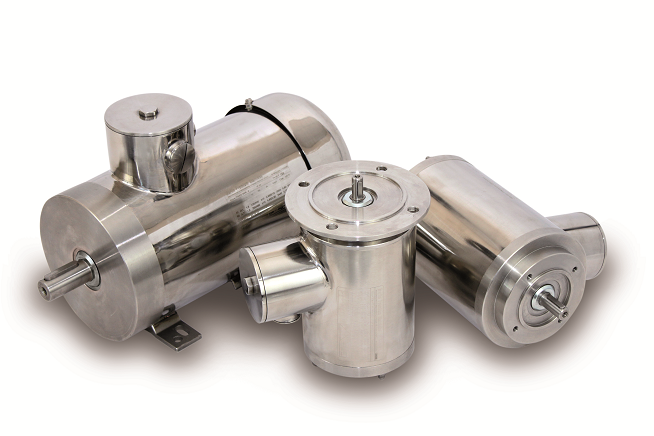

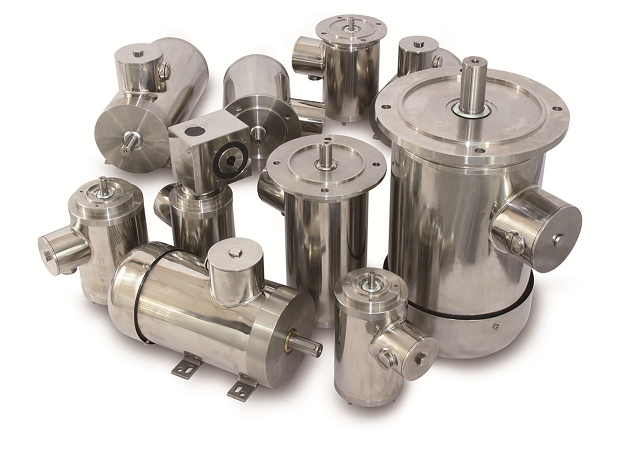

European Metric Stainless Motors

Marlin Stainless Steel Motors will help you to reduce down-time for cleaning, maintenance and repair.

Read more

Clean In Place

European Metric Stainless Motors

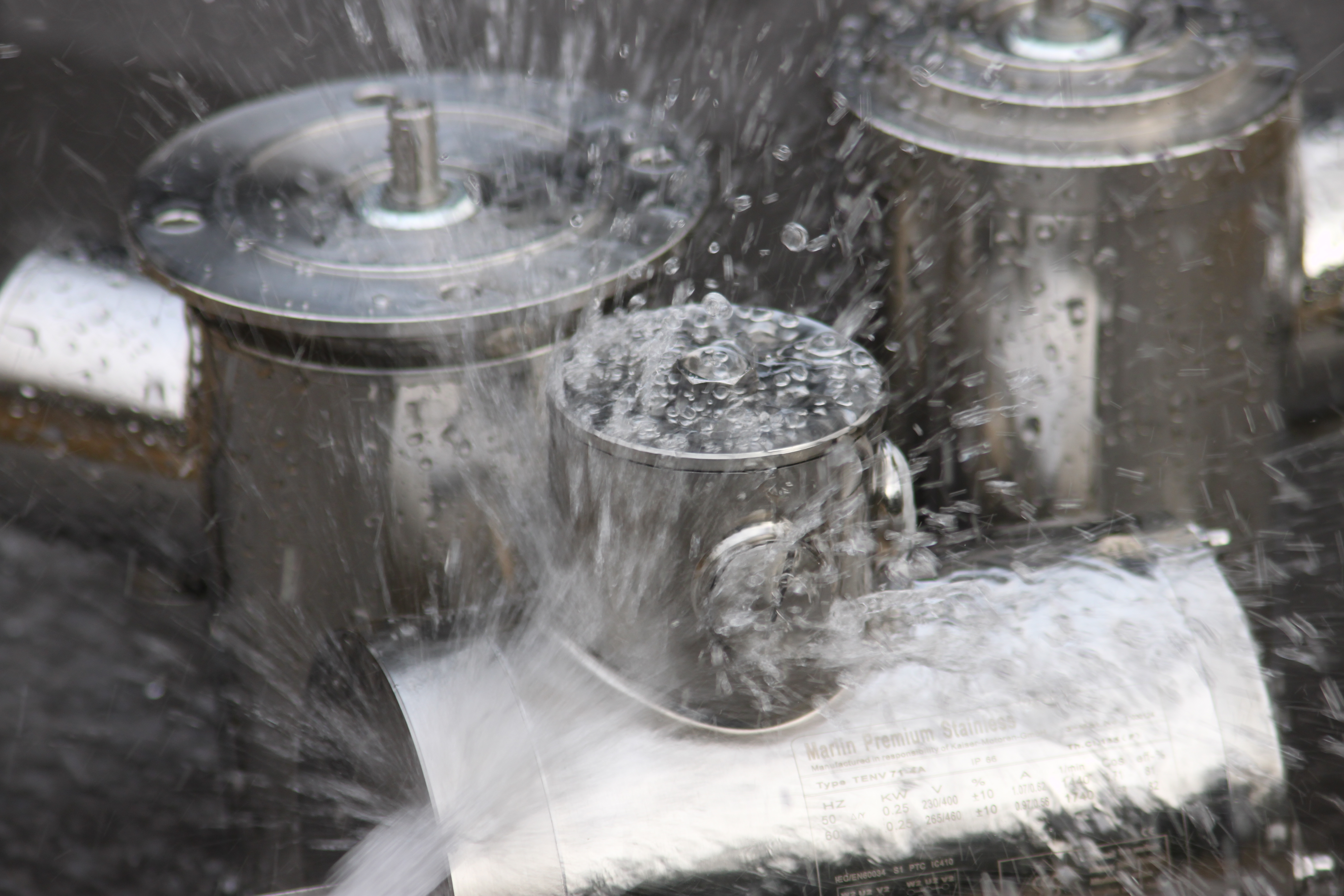

When food, beverage or pharmaceutical production plants are washed down, the motors are subjected to high pressure jets of sometimes high-temperature water, or aggressive cleaning agents.

Read more

Hygienic IP66 Solution

Washdown Tolerant

For further details, click to read more...

Read more

.

Please provide valid email address.

CLEAN IN PLACE

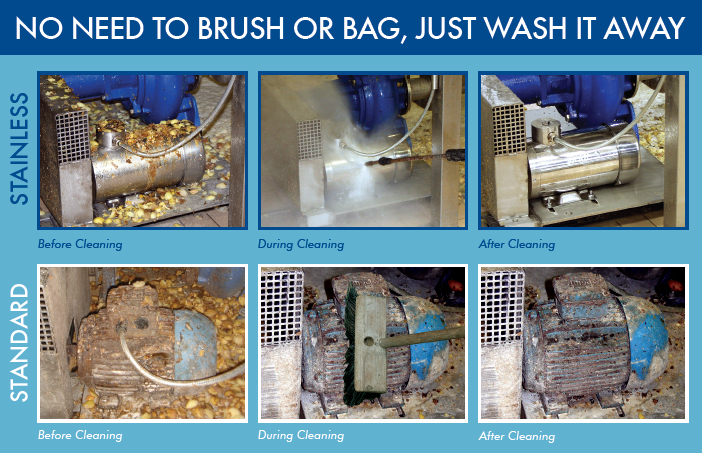

No need to brush or bag, just wash it away.

service 1

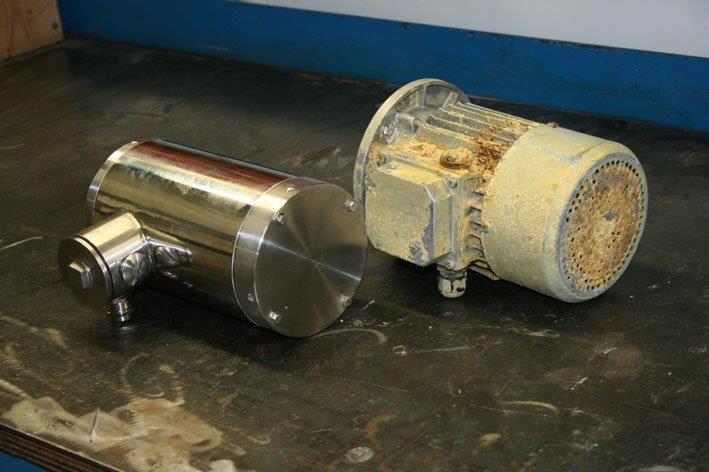

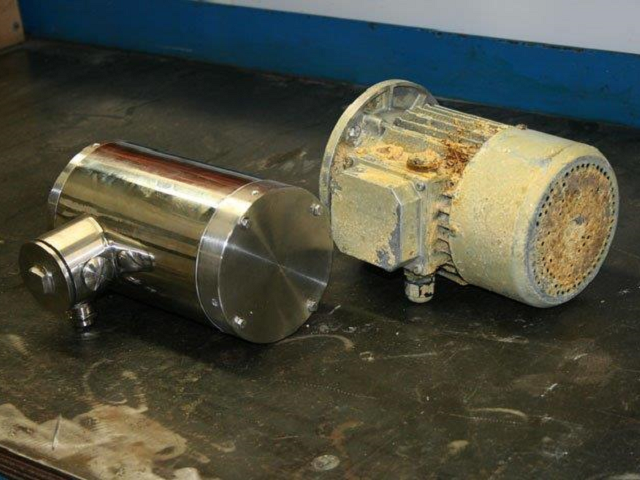

Beats Corrosion

The motor body, shaft, fan cover, gamma seal and fixings are 304 series stainless steel. This chemically resistant surface with no paint to flake off is ideal for use in hygienic applications. A range of seal options, including stainless steel, is available to suit your specific application.

service 2

Washdown Tolerant

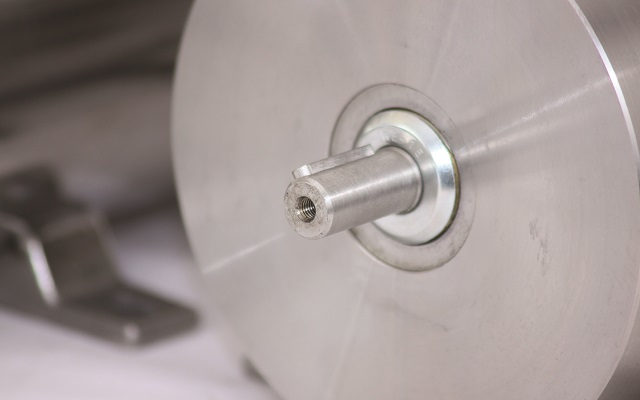

EUROPEAN manufactured and exceeding IP66 during external testing, the Marlin Stainless range is a proven design for CIP (Clean in Place) areas and washroom situations. A Viton double lip seal and a second GAMMA seal fitted on the shaft are examples of the attention to detail for protection against potential ingress during wash down.

service 3

Where Hygiene Counts

Unlike standard motors the Marlin Stainless range has "clean lines" and no cooling fins. Designed with cleaning in mind, it has no paint to chip or flake off, no surface that will rust. Waste products can be washed away easily leaving no residue and the motor can be used with confidence in food processing areas. Even the rating plate is laser etched on the outer casing to reduce areas where bacteria can lurk.

image0x


.

Please provide valid email address.

CLEAN FEATURES

project 1

Rated for...

"STATIC" FREQUENCY CONTROLLERS/VARIABLE SPEED DRIVE OR INVERTER USE
The whole Marlin range is suitable for inverter drive use and has phase barriers and PTC thermistors fitted as standard. On request PTO (Klixon style) bi-metallic thermostats can be fitted as an alternative to protect against over-temperature.
project 2

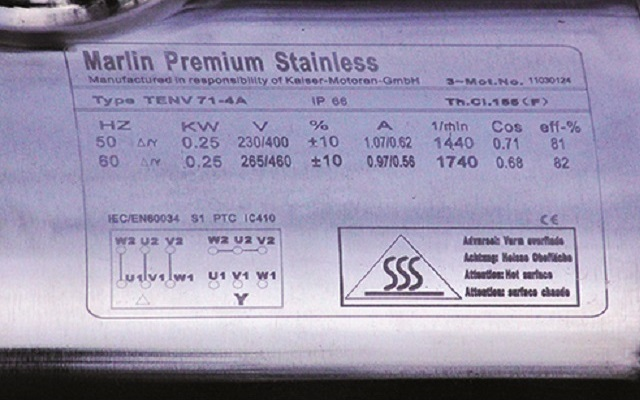

Etched Nameplates

The nameplates and fixings on standard motors are prime areas for waste and dirt entrapment.
They corrode, get damaged and even detach. The Marlin Range has the technical data etched directly onto the motor body, thus eliminating these hygiene and safety risks.
project 3

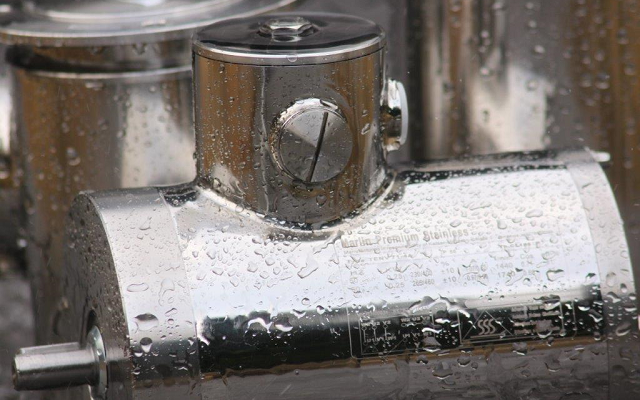

IP66 Sealing

Defined by IEC 34-5 and BS 4999 pt 105, the code consists of 'IP' Ingress Protection rating: two digits, the higher the numbers, the higher the protection.
The first digit relates to the ingress of dust or solid particles, but it is the second digit which is of paramount importance for this product range, as it relates to the protection level against water projected in powerful jets from any direction. This makes the product ideal for critical washdown applications.
project 7

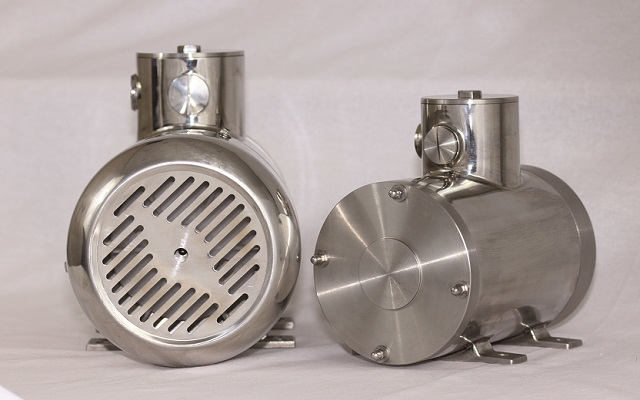

TEFC and TENV

Totally Enclosed Fan Cooled motors rely on air being pulled from the non-drive end of the motor through a fan; this is then blown over the motor body to help dissipate the generated heat.
Totally Enclosed Non-Ventilated motors work on the basis of more active material and optimised efficiencies, reducing the heat generated through losses thus negating the need for a fan.
The TENV types are standard up to and including 0.75Kw and due to their design, have cleaner lines and fewer areas for entrapment of dirt or waste product.
project 8

Tropicalised Internal Components

Corrosion-resistant rotors and advanced winding varnishing techniques dramatically increase the motor's reliability and expected lifetime.
project 9

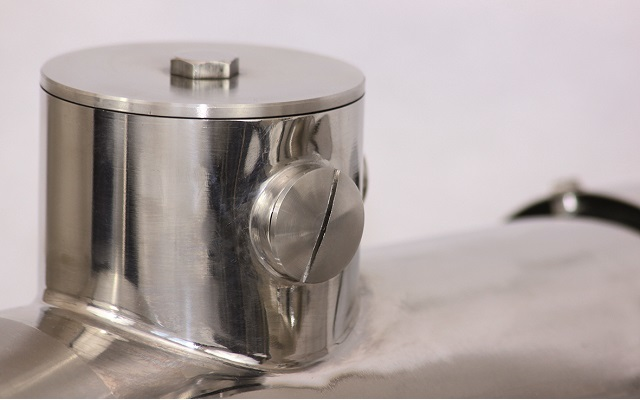

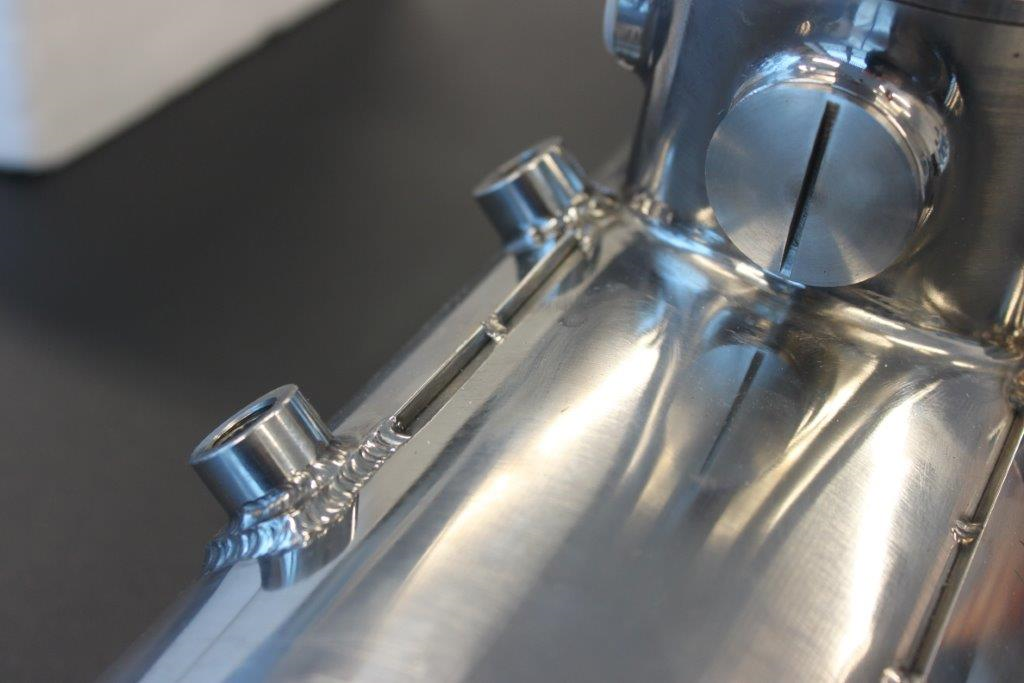

Round Terminal Box as Standard

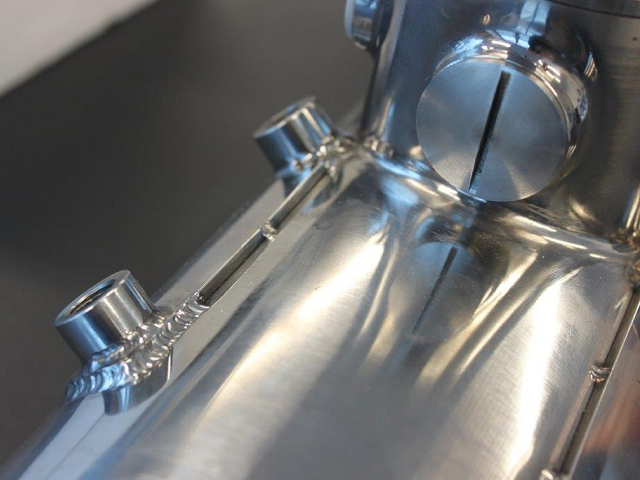

The round smooth terminal box, which is machined and welded directly onto the frame of the motor, has fewer places to trap water or dirt.
It also benefits from smooth hygienic gland-seat extension, proving again the attention to detail from a hygienic perspective.
This will be seen as another important factor for factory inspectors/auditors.
  • project 1

    Rated for...

  • project 2

    Etched Nameplates

  • project 3

    IP66 Sealing

  • project 7

    TEFC and TENV

  • project 8

    Tropicalised Internal Components

  • project 9

    Round Terminal Box as Standard

.

Please provide valid email address.

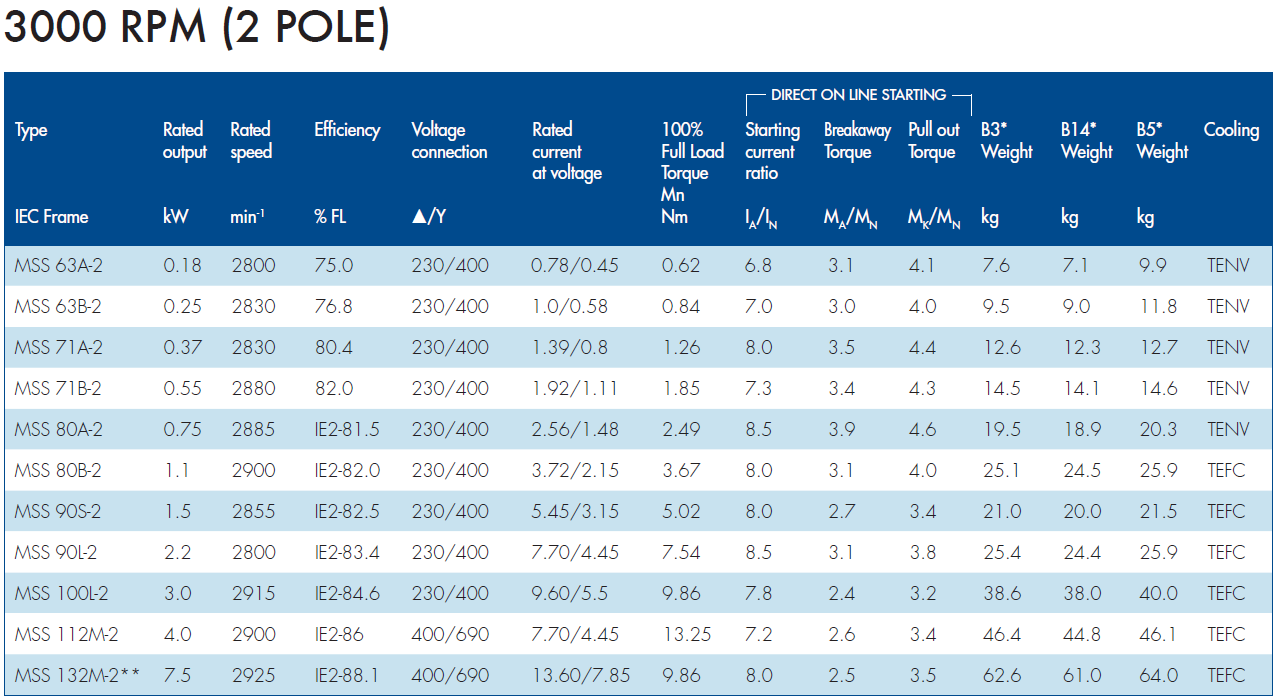

CLEAN DATA

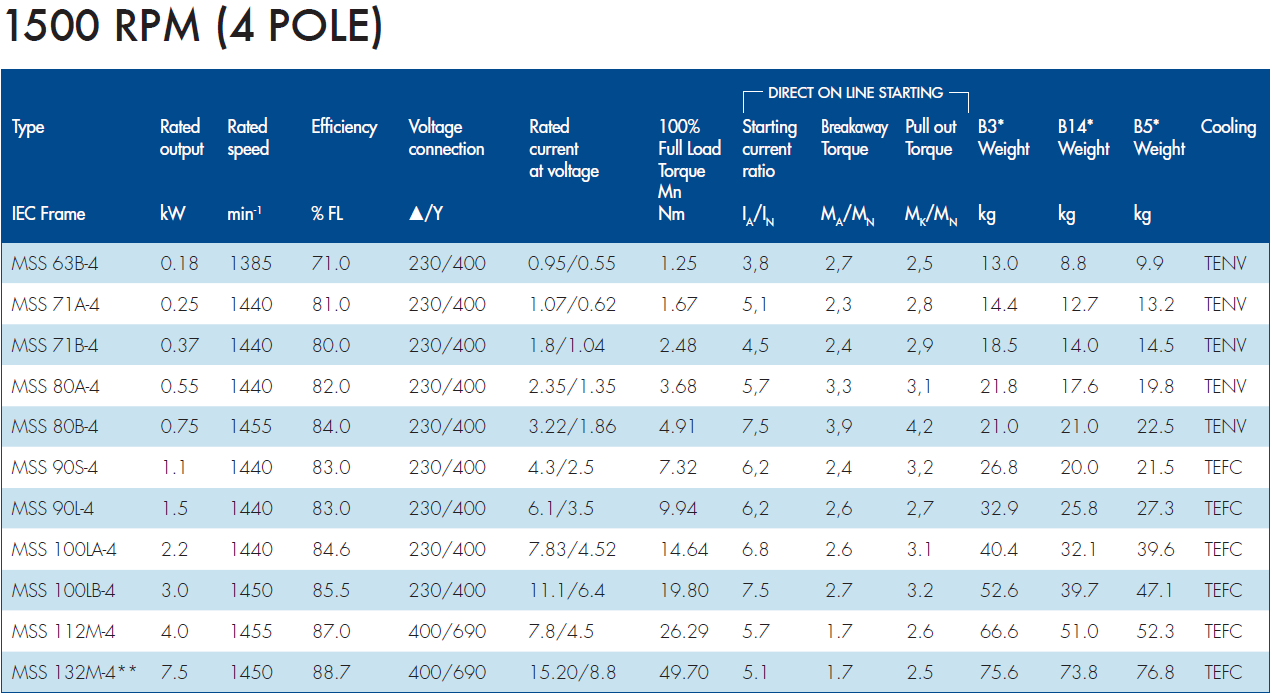

6 Pole motor data is available upon request

* Full data sheet available upon request, including 60Hz data (All motors able to run at 60Hz).
** Motor weights are un-boxed, please add for packaging.
*** According to EU commission regulation EC640/2009 from Jan 01 2015 : all motors installed in the European Market > 7.5kW IE2 used with variable speed drive.

.

Please provide valid email address.

CLEAN CHOICES

CLEAN CHOICES

  • Alternative terminal box positions for foot-mounted motors.

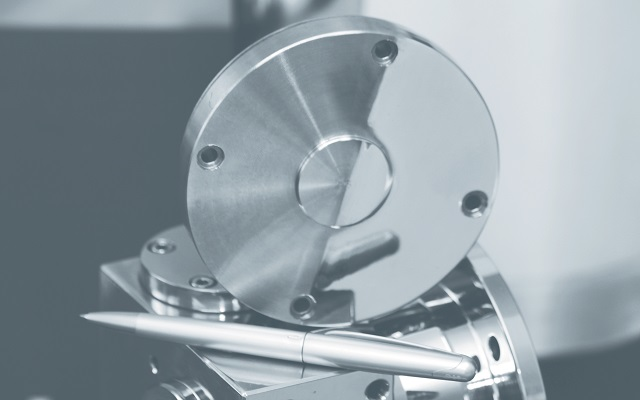

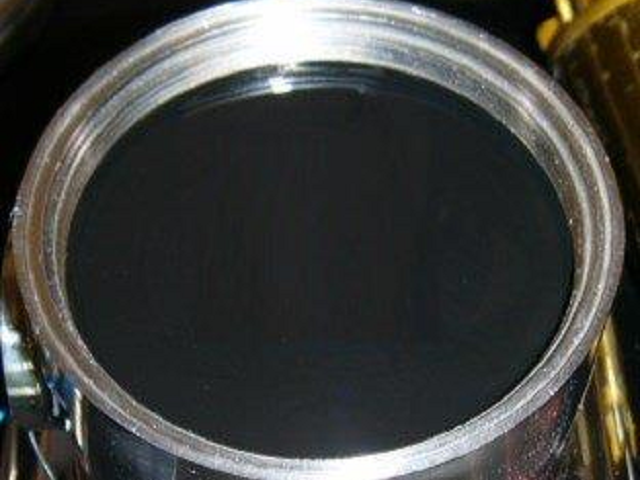

  • Pharmaceutical grade polishing exceeding 0.5 microns.

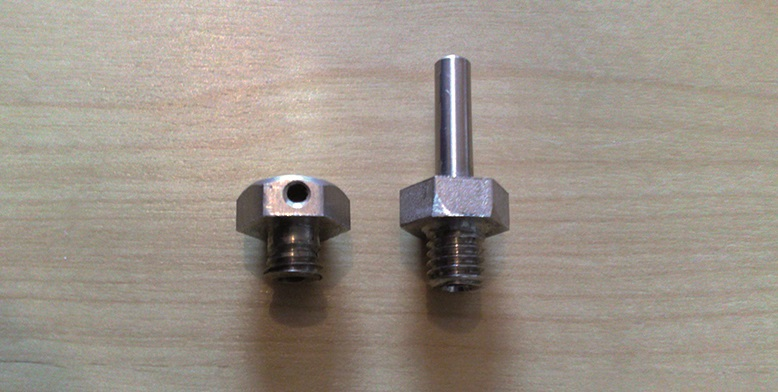

  • Heaters - used to reduce condensation and keep moisture out. They also help keep windings and bearings within normal operating temperatures in low-ambient conditions.
  • Application specific drain plugs can be fitted when needed on request as a proven way of removing condensation from inside the motor.
  • image0x
image0x

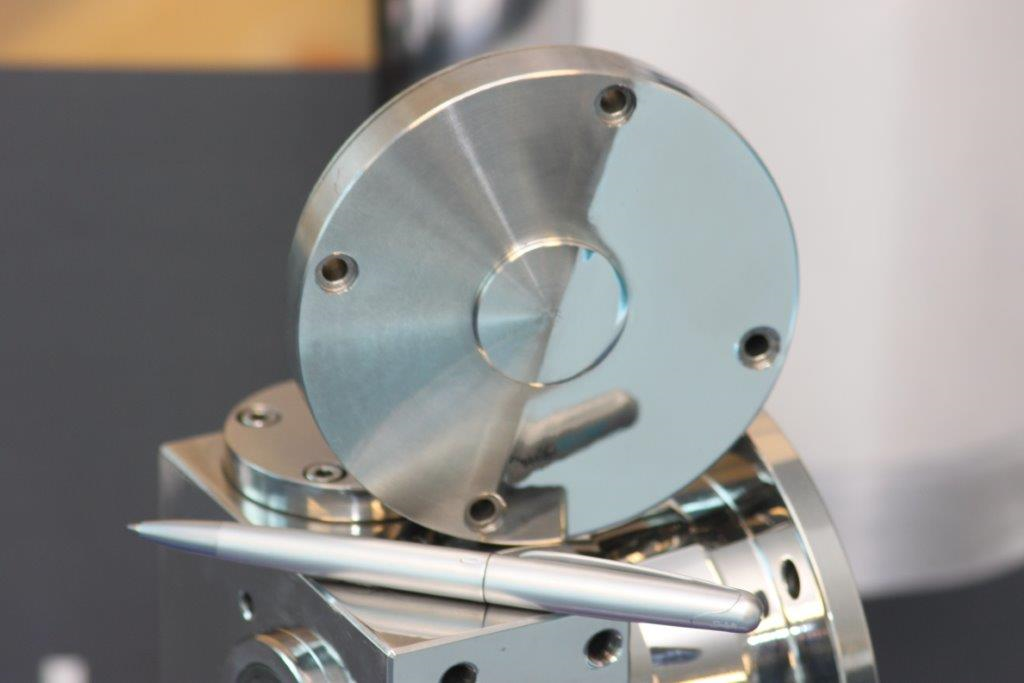

CLEAN GEARBOXES

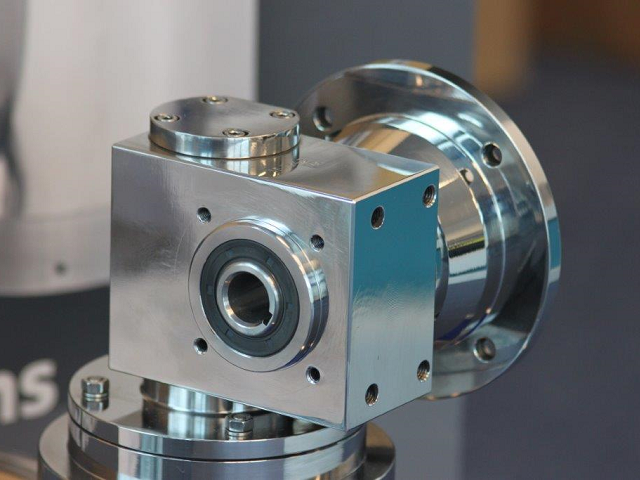

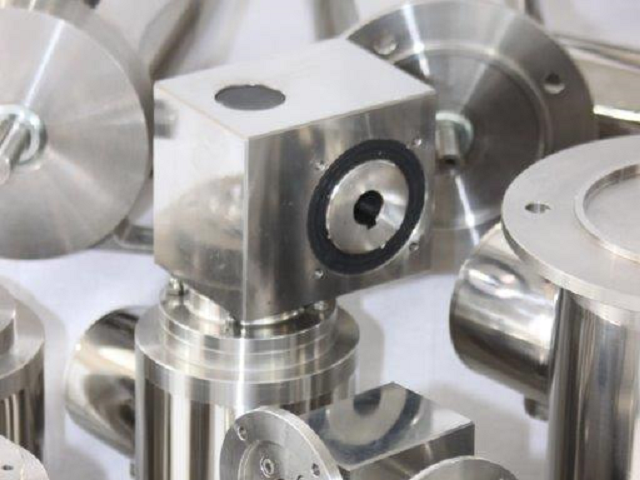

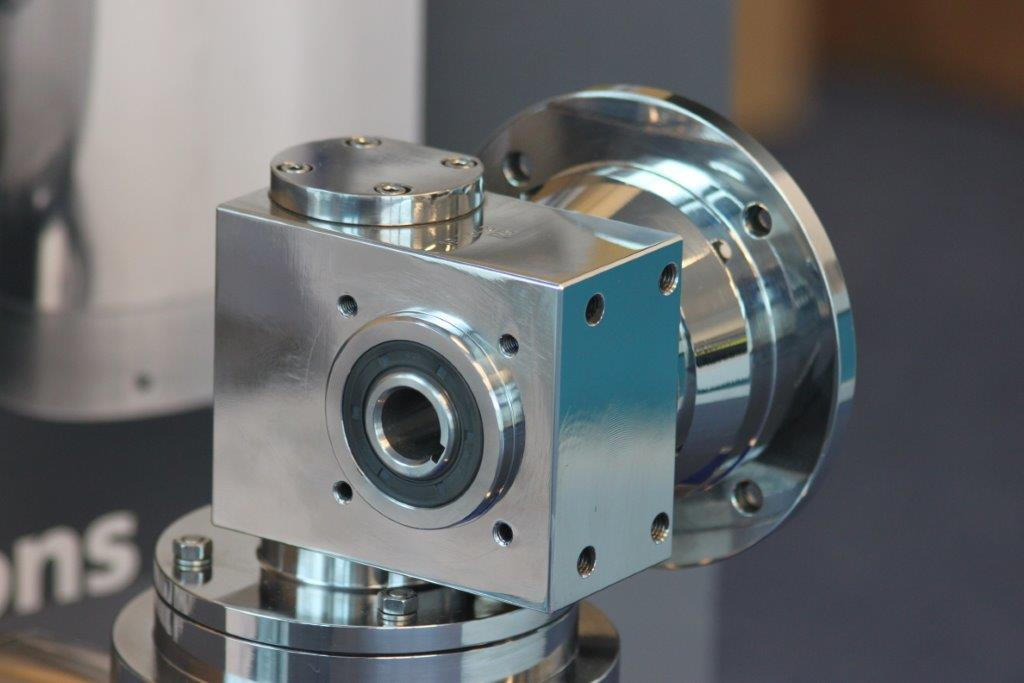

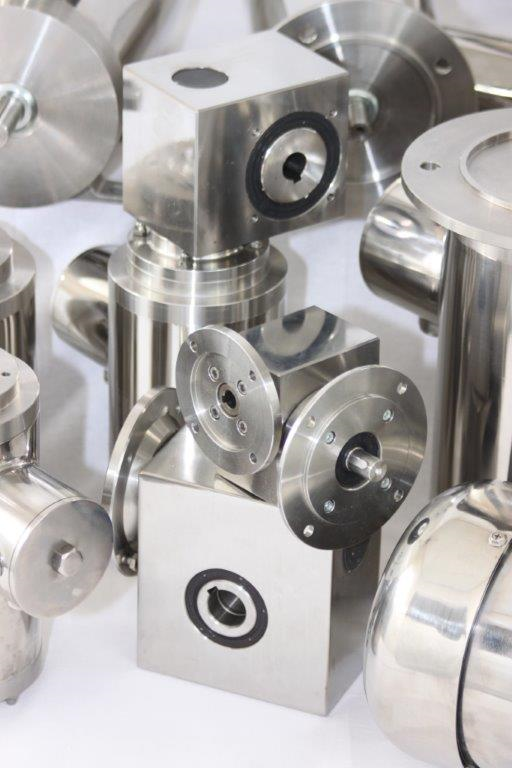

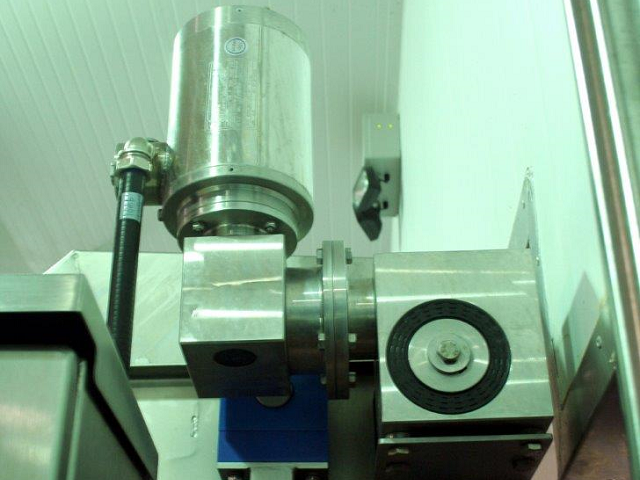

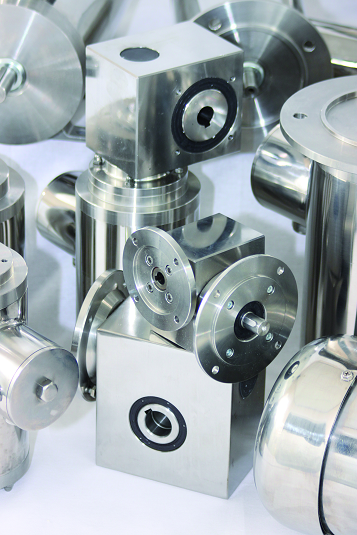

  • Smooth-bodied stainless steel gearboxes are available. Their uniform design makes them ideal for multi-stacking, or double ratio (back-to-back) is possible; achieving very low output speeds and high torques.
  • See our Stainless Worm and Helical Bevel Gears brochure for further details about the Marlin Stainless gearbox range.
  • image0x

CLEAN CUSTOMISATION

  • SPECIAL CONSTRUCTION TENV AND TEFC

    - Outside of standard powers

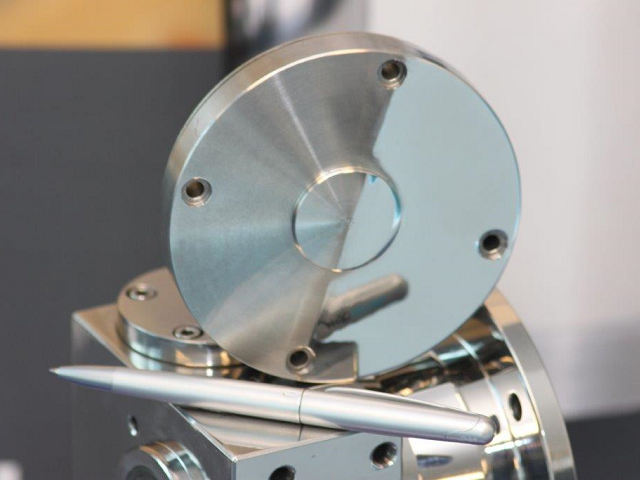

  • SPECIAL SHAFTS AND FLANGES INCLUDING SEW DRIVE END SOLUTION

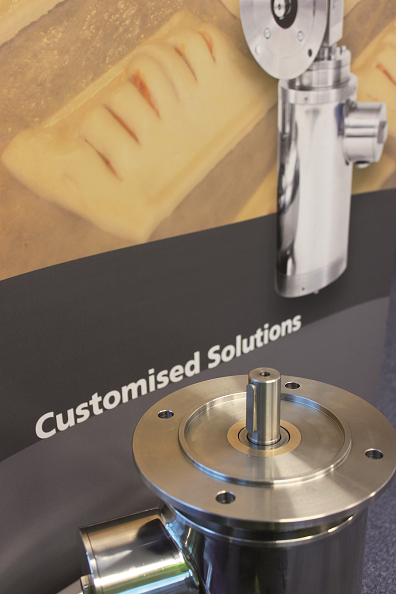

    The standard IEC flange configurations are commonly required for the majority of pump, fan and gearbox applications. However, we are also able to produce special drive end flange and shaft solutions for customised machinery.

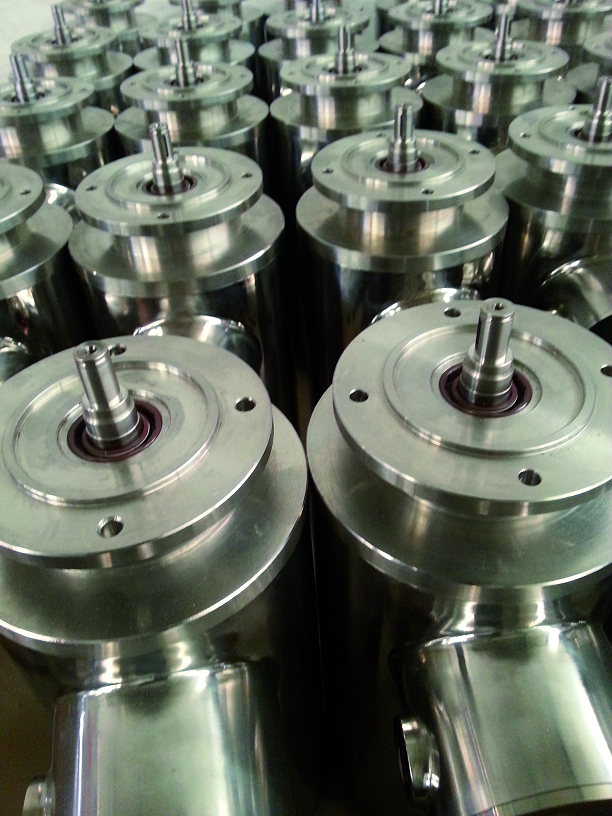

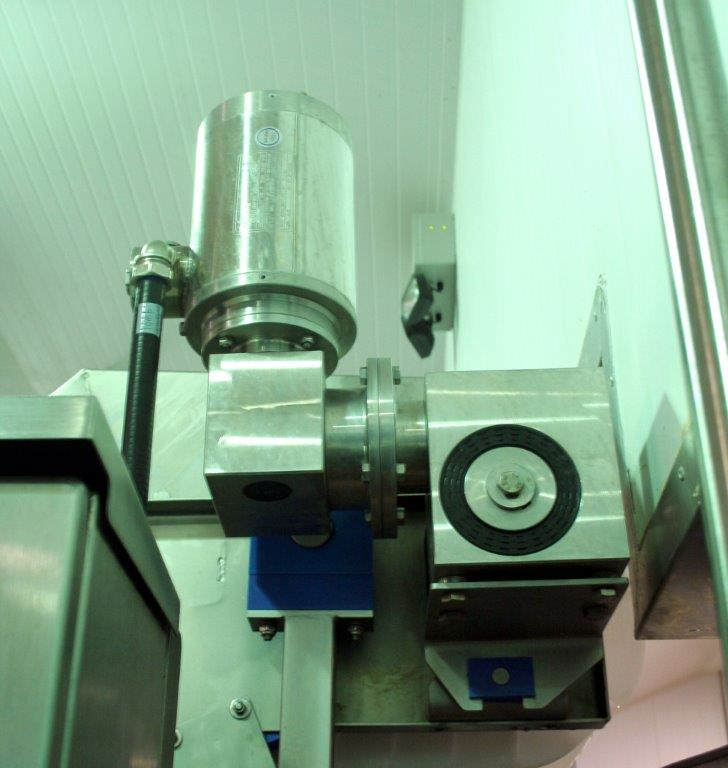

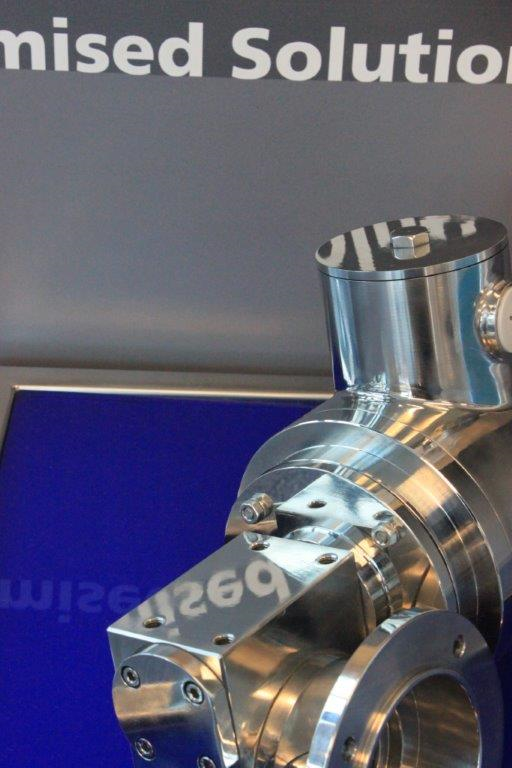

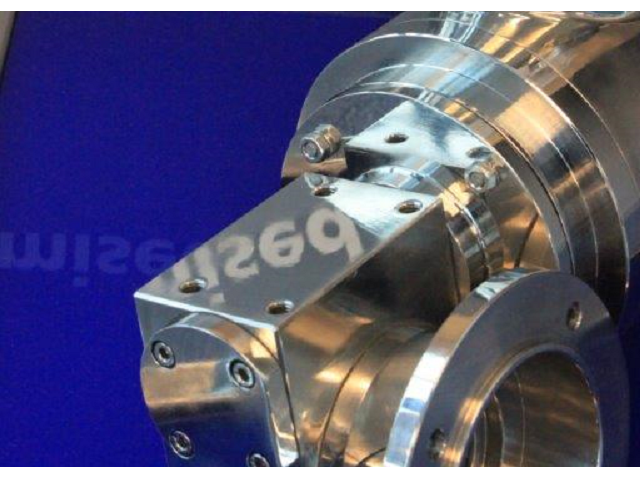

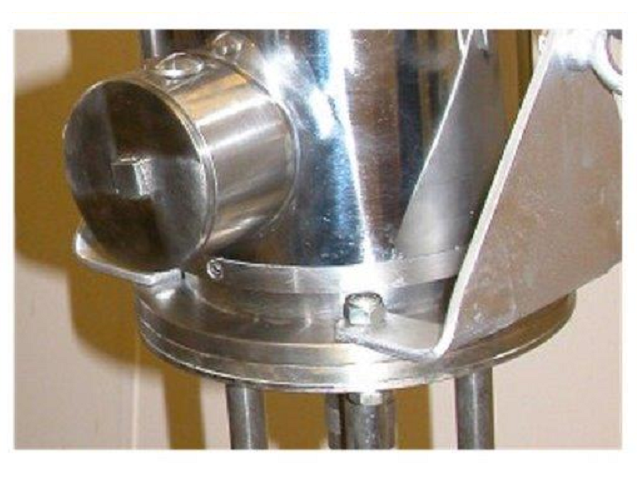

    One example seen in the photo is the solution for SEW Eurodrive who are a major supplier to the food and beverage industry. We can supply motors with the special shaft and flange required for this range of gearboxes to enable direct replacement without the need for adaptors.

  • WATER COOLED

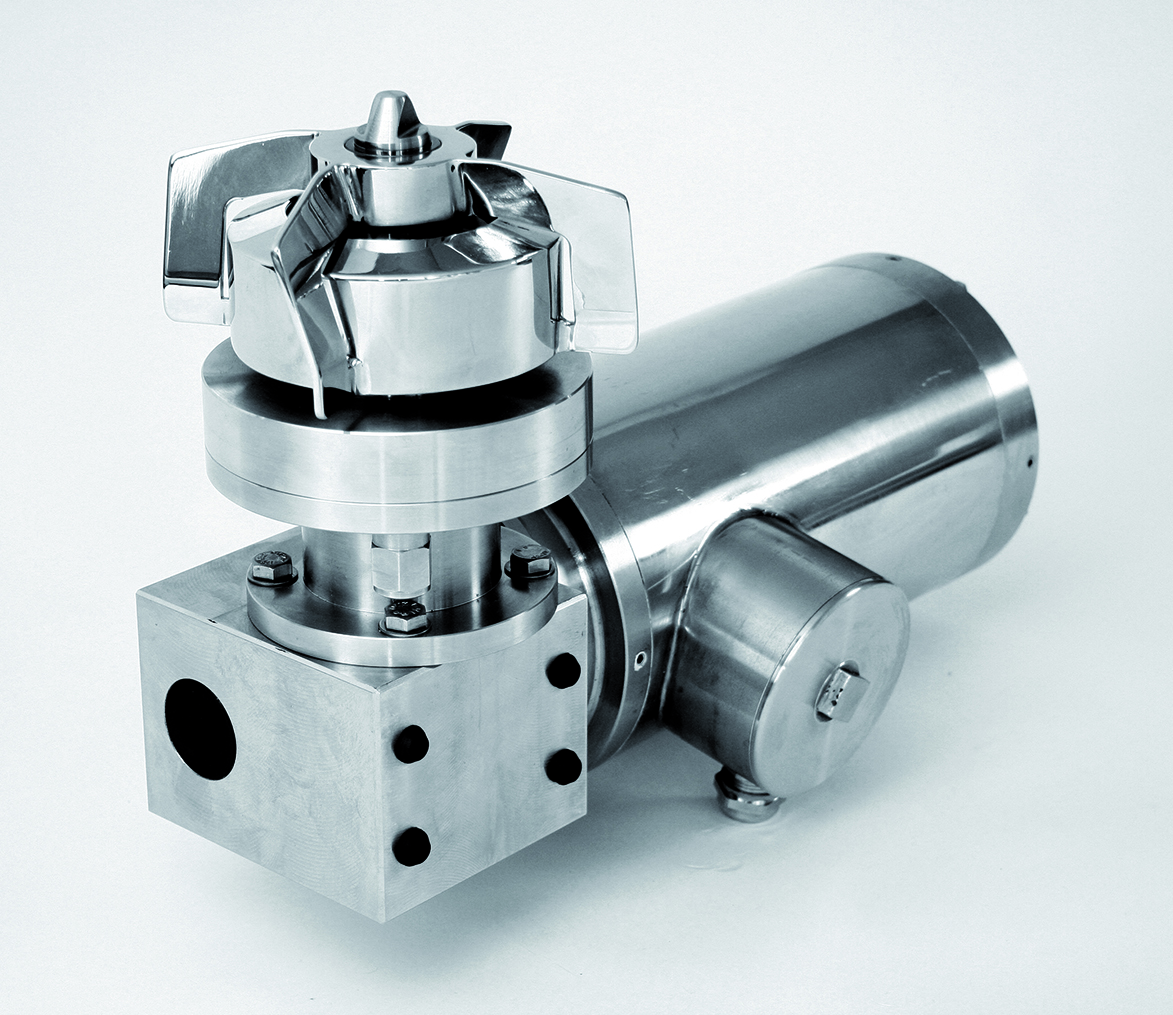

    Stainless steel motors for extreme high ambient environments and where more compact and high powers are necessary. More cooling equals more power.

  • PAD MOUNT

    for fan applications. Typical example is for vertical shaft down fans for funnel freezers where the motor is central in the airstream.

.

Please provide valid email address.

OPTIONAL EXTRAS

SPECIAL ELECTRICAL DESIGN

Windings can be spot-wound for special voltage and frequencies outside of European standards, thermal insulation to Class 180 (H), and/or have a certified insulation system fitted such as UL/CSA standards. Cert155.1.0 - E313095

ATEX - Zone 22 available upon request

ADDITIONAL ETCHING - Company logos, web addresses, order references and warnings can be etched directly onto the motor body in addition to the existing nameplate information

Suni

OPTIONAL ENHANCED SEALING ARRANGEMENTS FOR EXTREME APPLICATIONS

Experience has proven that enhanced sealing techniques can dramatically extend the motor's lifetime in extreme applications and mounting conditions, predominantly vertical shaft up. Magnetic sealing systems with precise labyrinth clearances are available for such arduous applications. These compact precision lapped, face contact, mechanical seals give bi-directional protection where 100% positive seal protection is required with or without shaft rotation. This is very important to precent pooling issues in shaft up applications when stationary or cooling back. They create zero shaft wear, prevent lubraication loss, eliminate contamination (solids, liquids and steam), have self-aligning faces and increase the equipment MTBF (Mean Time Between Failure).

Encapsulated compound complexity moulding and protecting the connections inside the terminal box with IP66 glands and bespoke flying leads to customers required specification.

Optional increased protection to IP69K for TENV motors. In the IEC 60529 rating system, IP6# refers to the product's ability to resist ingress of dust whereas IP#9K refers to the product's ability to resist ingress from high temperature (steam)/high pressure water.

Suni

LATEST EFFICIENCY LEGISLATION

In order to meet the new mandatory efficiency legislation applicable from Jan 2017, we are able to offer a full range of IE3 stainless motors for use direct on line (D.O.L). Alternatively a fully compliant package comprising of an IE2 stainless steel motors plus IP66 inverter is available.

.

Please provide valid email address.

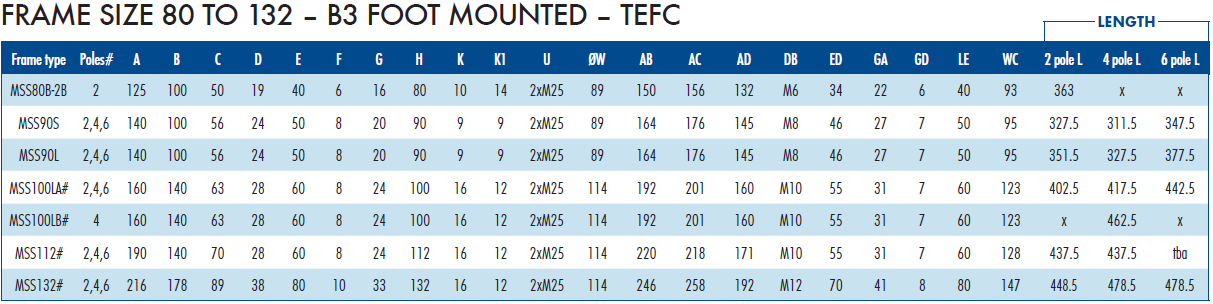

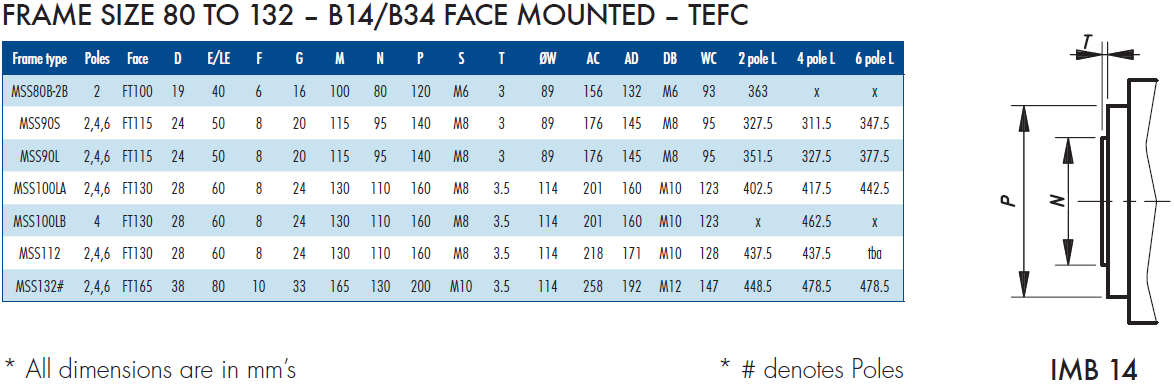

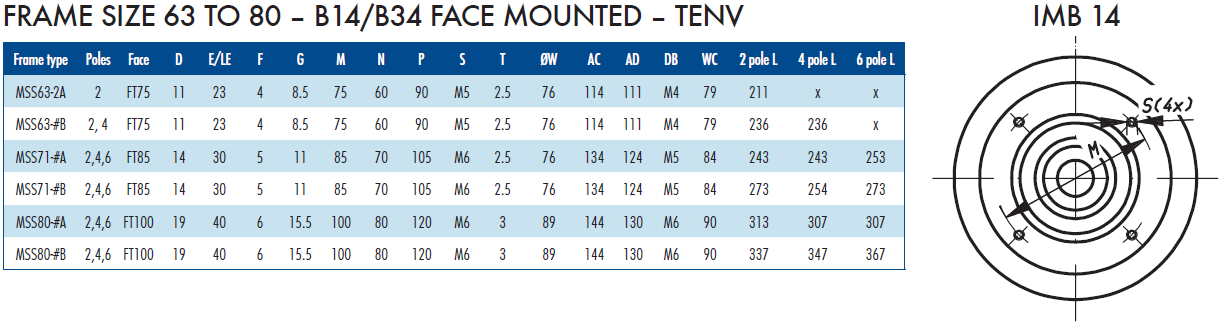

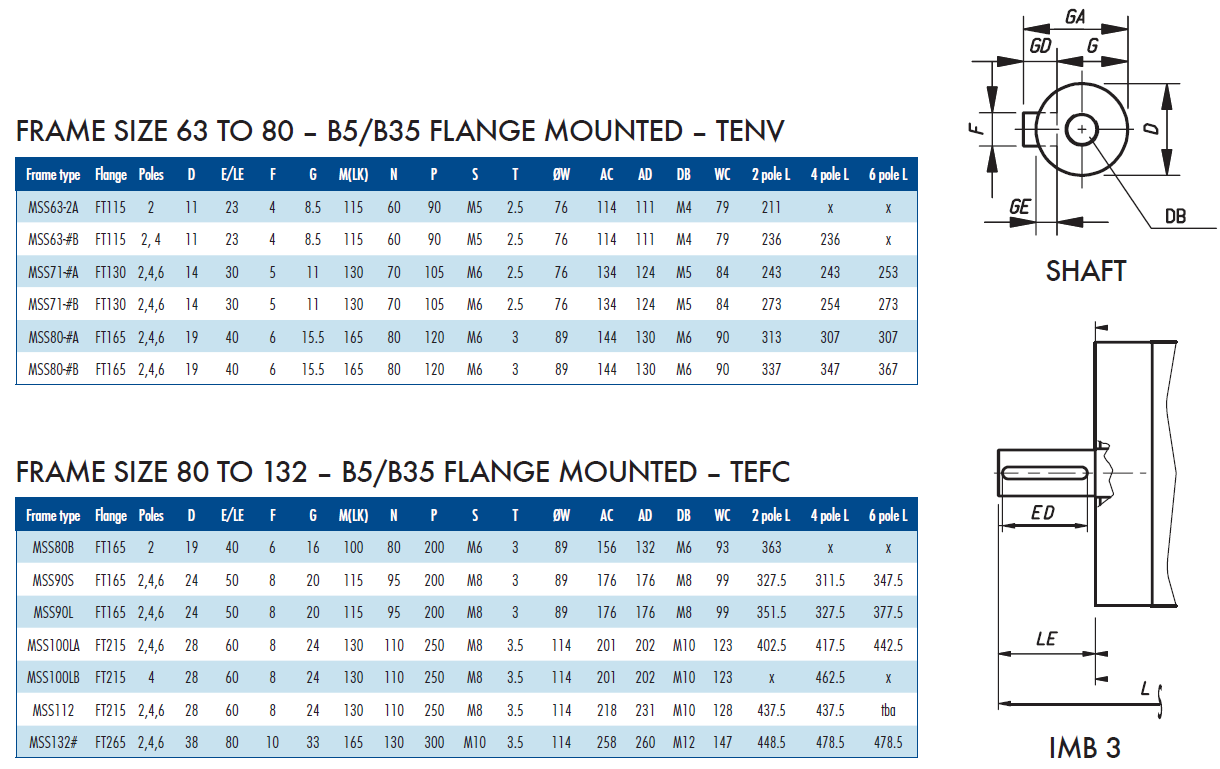

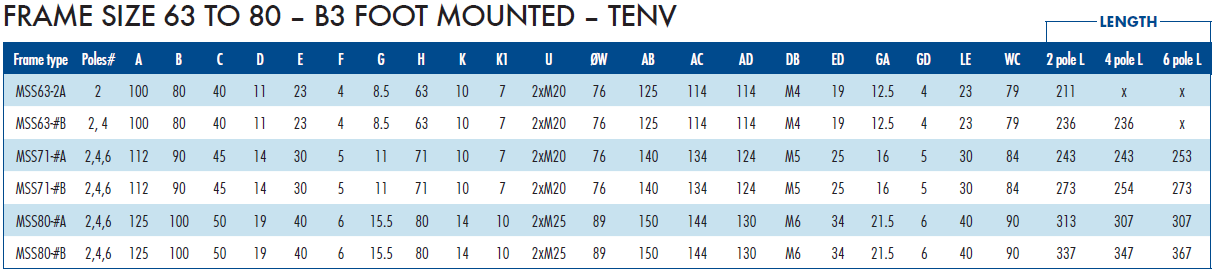

CLEAN DIMENSIONS


.

Please provide valid email address.

CLEAN REGULATIONS

SuniThe European standard EN 1672-2 which defines hygiene requirements for food production machinery, specifies three zones for the industry:

1 FOOD ZONE

2 SPLASH ZONE

3 NON-FOOD ZONE

The non-food zone covers components which do not come in contact with foodstuffs. It is nonetheless still mandatory to use corrosion-resistent materials in the non-food zone.

Suni

DESIGNED WITH STANDARDS IN MIND

BS EN ISO 14159

Safety of machinery. Hygiene requirements for the design of machinery, installations represent potential hygiene risks to food which could endanger consumers. The Standard specifies measures to avoid risk which must be taken by manufacturers.

BS EN 1672-2:2005+A1:2009

Food processing machinery. Basic concepts. Hygiene requirements. It also contains general notes on the special requirements, relating to preferred equipment materials.

ISO 1164-2:2007 (CIE S 014-2/E:2006)

Standard for cleaning and disinfection.

ISO 8086:2004 (IDF 121:2004)

Dairy plant. Hygiene conditions. General guidance on inspection.

Suni

SAFETY STANDARDS

Our motors comply with the requirements of the International Standard IEC 60034 for rotating electrical machines as well as the following EUropean Directives: Low Voltage Directive (LV) 2006/95/EC; Electromagnetic Compatibility Directive (EMC) 2004/108/EC; and RoHS Directive 2011/65/EC on the restriction of hazardous substances in electrical and electronic equipment.

All products comply with the requirements of the Machines Directive (MD) 2006/42/EC. In accordance with this Directive, induction motors are components intended solely for integration into other machines. Commissioning is forbidden until conformity of the end product with this Directive is proven.

The CE marking was applied for the first time in 1995.

When operating the motor, the observance of the Regulation EN 60204-1 and safety instructions indicated in our Operating Instructions must be complied with.

Motors can be supplied with other international Standards are available on request.

Motors can be supplied with insulation approved by UL Underwriters Laboratories Inc.

All technical data, outputs, dimensions and weights stated in this catalogue are subject to change without prior notice. The illustrations are not binding.

QUALITY CONFORMITIES, STANDARDS AND REGULATIONS

Manufactured to a Quality Management System IS)9001:2008

Suni

CLEAN IN PLACE

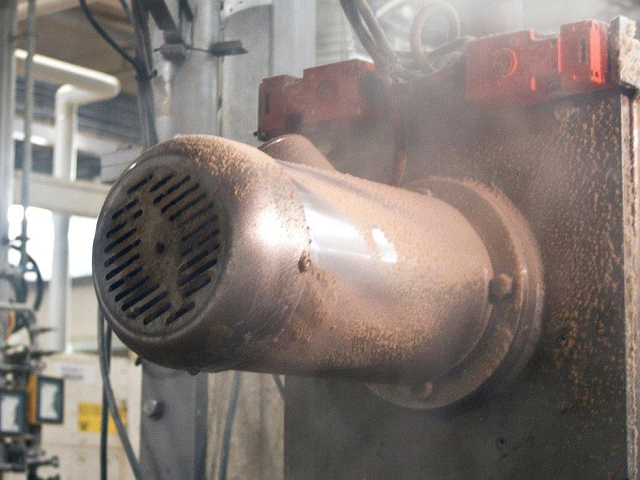

When food, beverage or pharmaceutical production plants are washed down, the motors are subjected to high pressure jets of sometimes high-temperature water, or aggressive cleaning agents. Dependent upon the severity of this washdown, many consequences can occur including failure of the motor on start up through ingress of water, corrosion of exterior or internal parts if using standard alloy or cast iron mterial and potential for paint flaking and contaminating the final product itself.

Suni

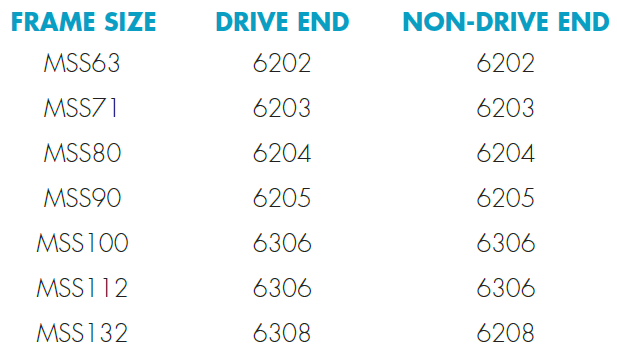

BEARINGS

The bearings used in the Marlin Stainless range have special synthetic high-temperature lubricating grease with a wide operating range -40℉C to 180℉C, and an excellent Drop point, DIN ISO 2176 >= 250℉C.

Excellent ageing and oxidation stability. Mechanically they are to C3 clearance and are fixed at the drive end to reduce axial shaft movement making the range suitable for mixers and close coupled pumps.

.

Please provide valid email address.

APPLICATION STORIES

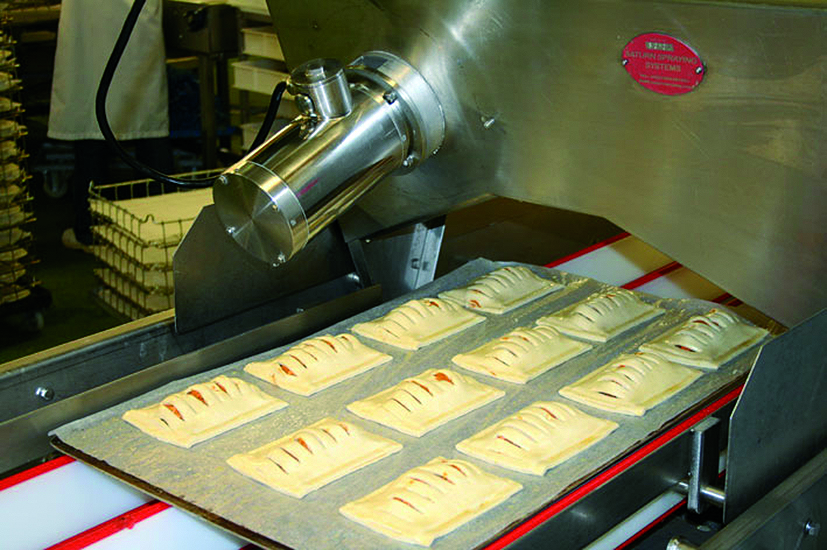

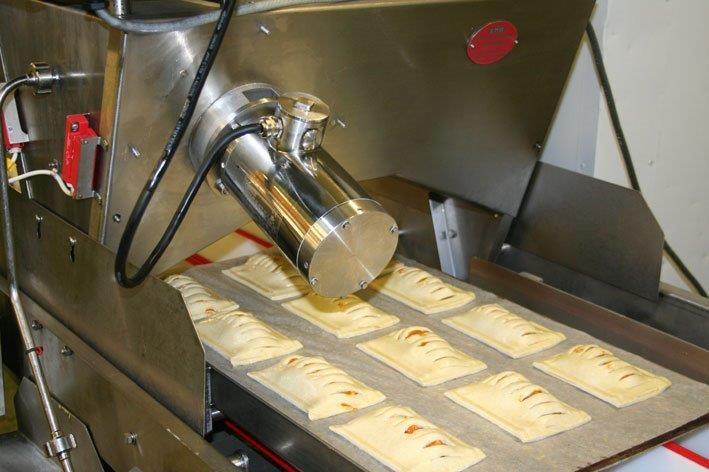

Elimination of motor failures has to date saved £1000s in maintenance engineering costs for Weetabix. These savings have accrued following the installation of Marlin stainless steel AC motors from Lafert in January 2014 as replacements for conventional motors on breakfast cereal extruders at a production facility in Corby.

client 1 Weetabix

David Berryman Ltd of Dunstable is the UK’s largest independent blender of fruit juices and fruit juice bases, supplying to customers around the world. The company is at the forefront of its field and is very much involved with the introduction of new products and fruits to the drinks market.

client 2 David Berryman Ltd.

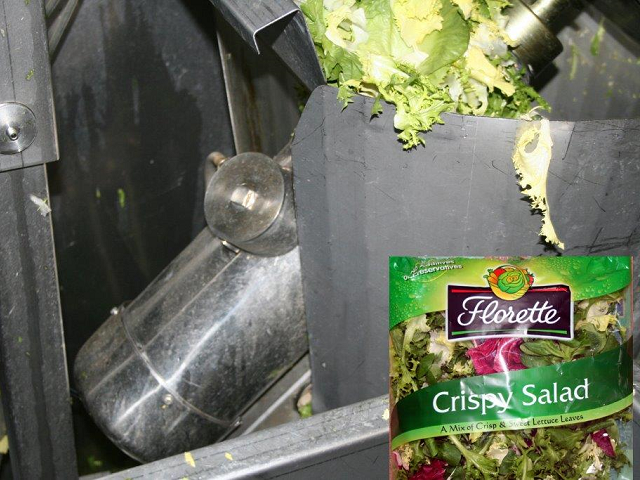

Typically, pay-back on equipment investments is quoted in terms of years or perhaps months. At the Florette Soleco salad production plant near Lichfield the pay-back for investment in a stainless steel motor is quoted in less than a month!

client 3 Florette Soleco

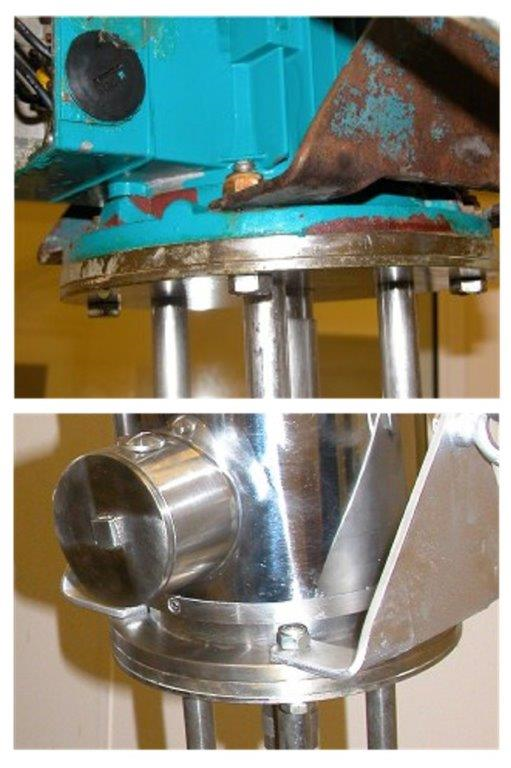

After a global search lasting over a year for a source for stainless steel AC motors compatible with its range of stainless steel mixers, Euromixers Ltd of Stockport has at last found a supplier.

client 4 Euromixers Ltd

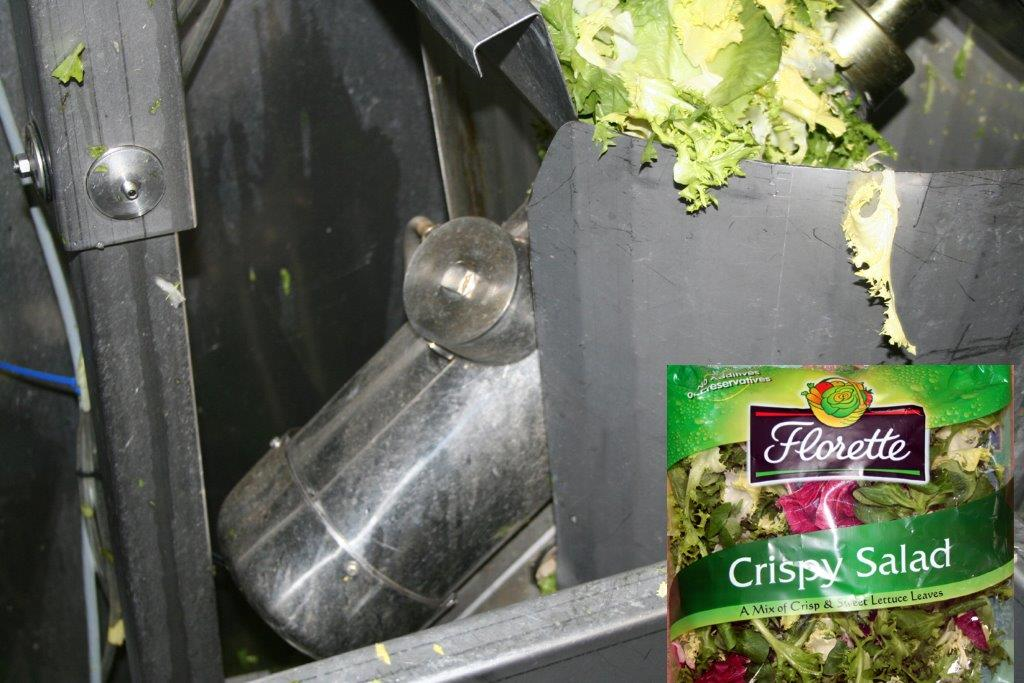

Processing of raw produce for the food processing industry inevitably generates waste and sometimes spillage. Such is the case with potato processors, Swancote Foods of Telford whose products are employed for cold products for leading manufacturers and retailers.

client 5 Swancote Foods

United Biscuits’ investment in stainless steel motors has brought significant returns in enhanced hygiene, reduced downtime/maintenance and extended motor life over conventional AC motors on its ’Twiglets’ production line.

client 6 United Biscuits

"The economics of installing Lafert’s ’Marlin’ stainless motors is just as much a driver for using them as the enhanced hygiene they offer," says Christien Jones, Engineering Director of The Village Bakery Coedpoeth Ltd, Wrexham.

client 7 The Village Bakery Coedpoeth Ltd

For many years in the food and pharmaceutical industry, stainless steel has been specified for product contact parts and noncontact parts alike. The one exception to this requirement has been with motors where a compromise of cast and painted motors housed within a stainless steel enclosure has been accepted.

client 8 Ytron-Quadro UK Limited

As part of an on-going process of maintaining the highest quality standards in conjunction with meticulous attention to hygiene, Australia’s number one cheese manufacturer The Bega Cooperative Society Limited is now implementing a policy of replacing existing conventional DC and AC motors with stainless steel machines.

client 9 The Bega Co-operative Society Limited

.

Please provide valid email address.

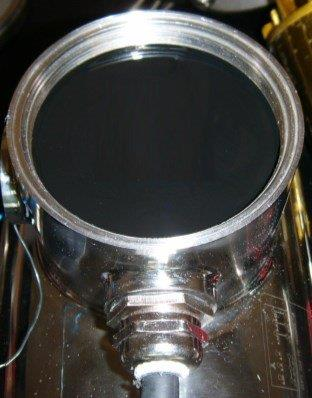

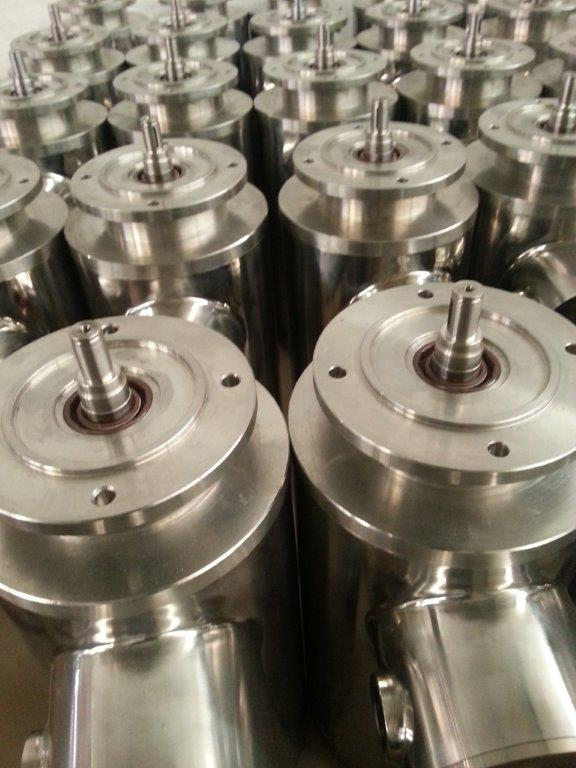

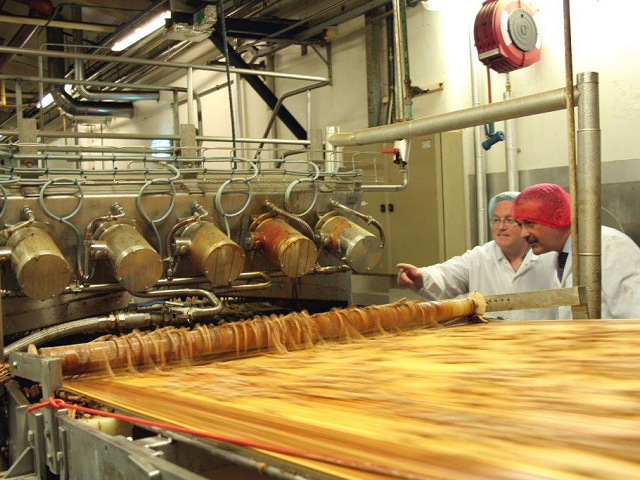

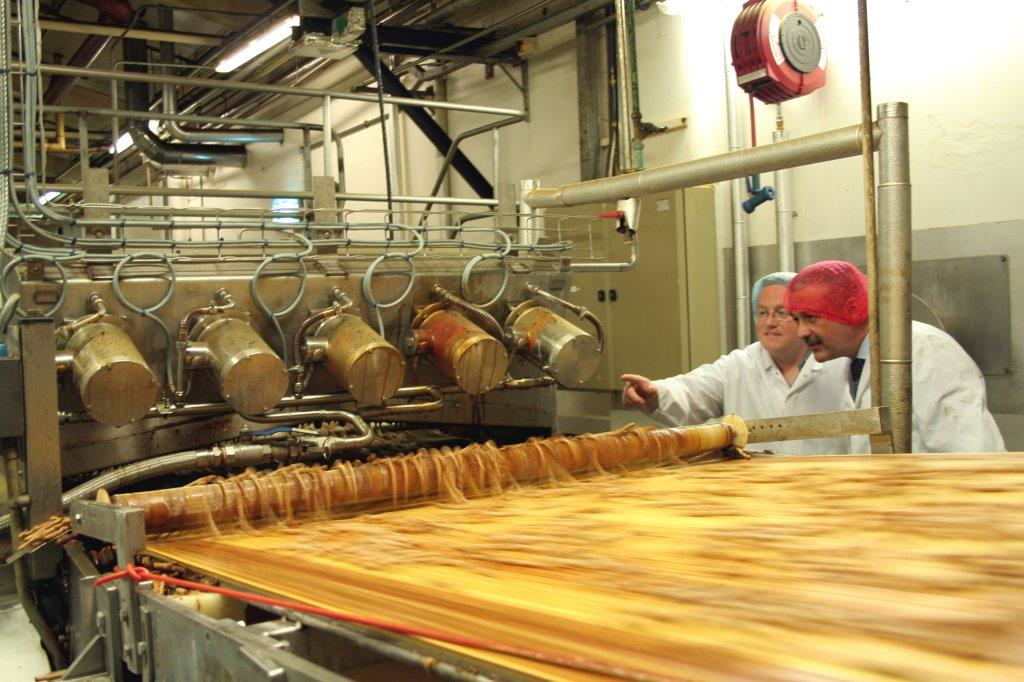

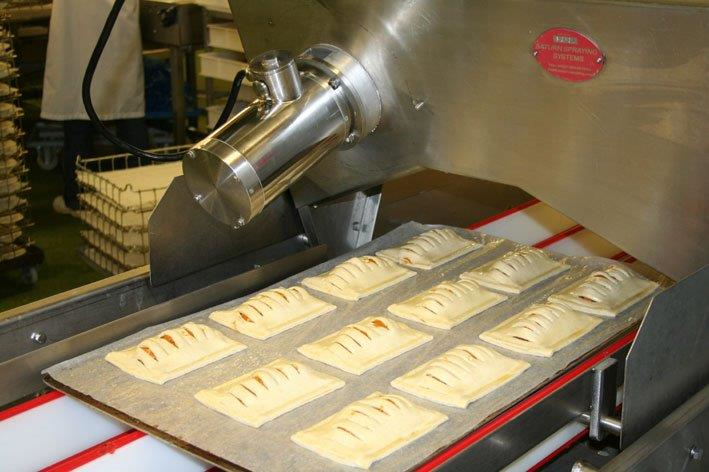

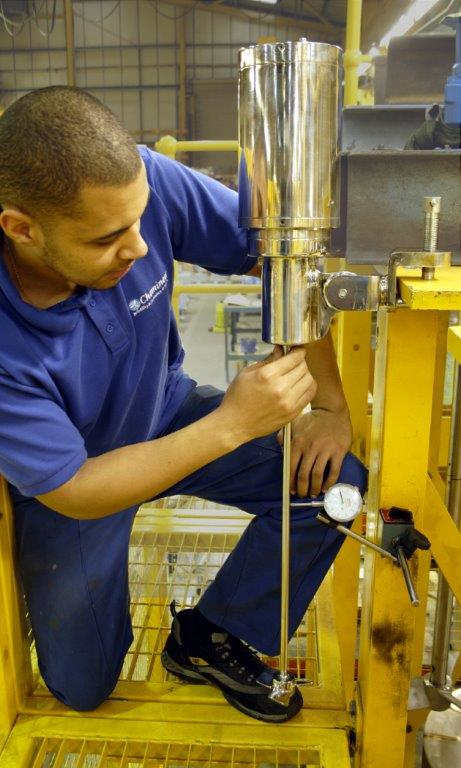

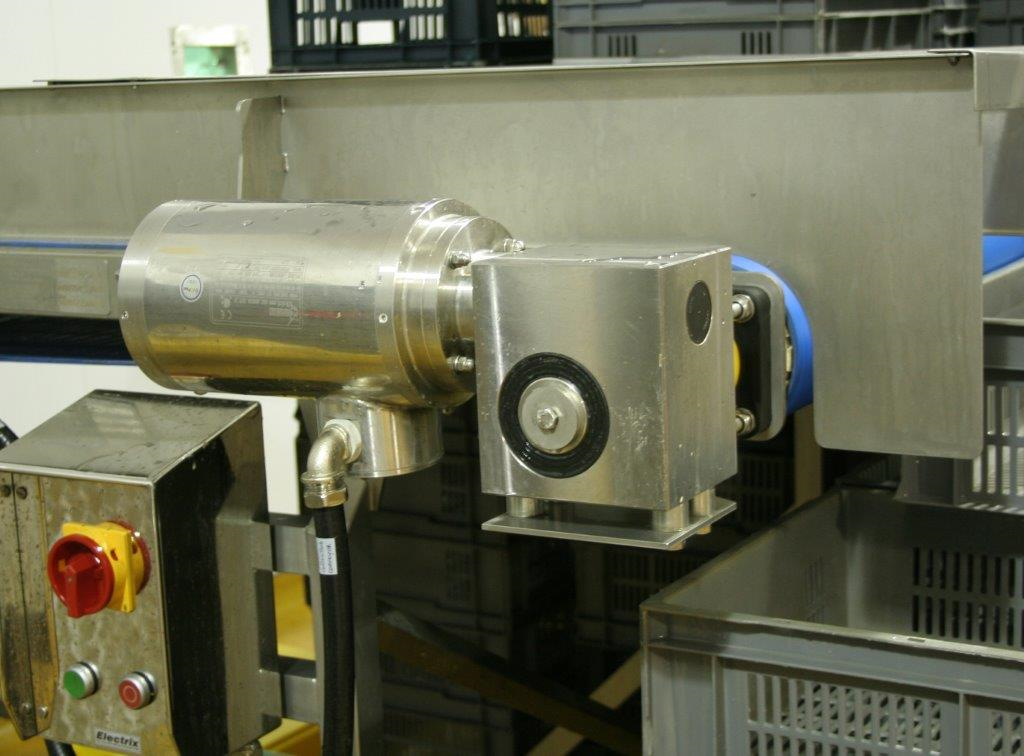

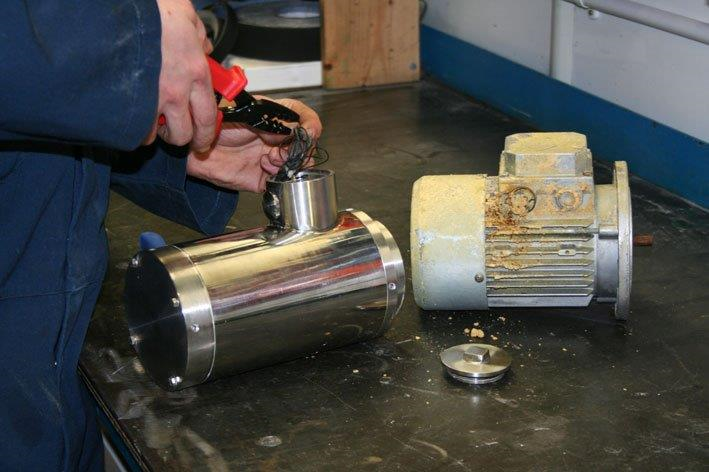

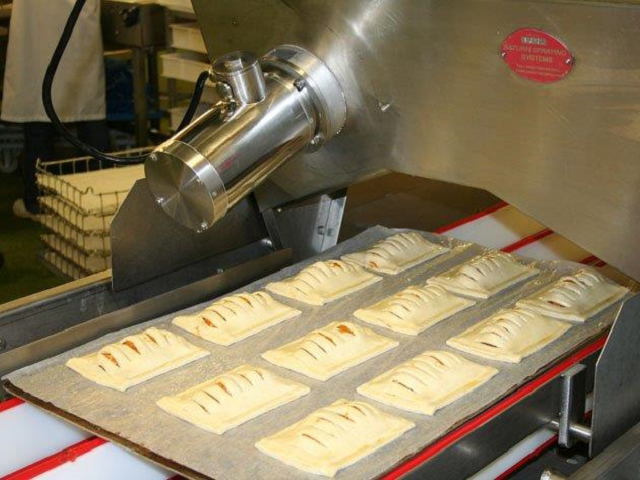

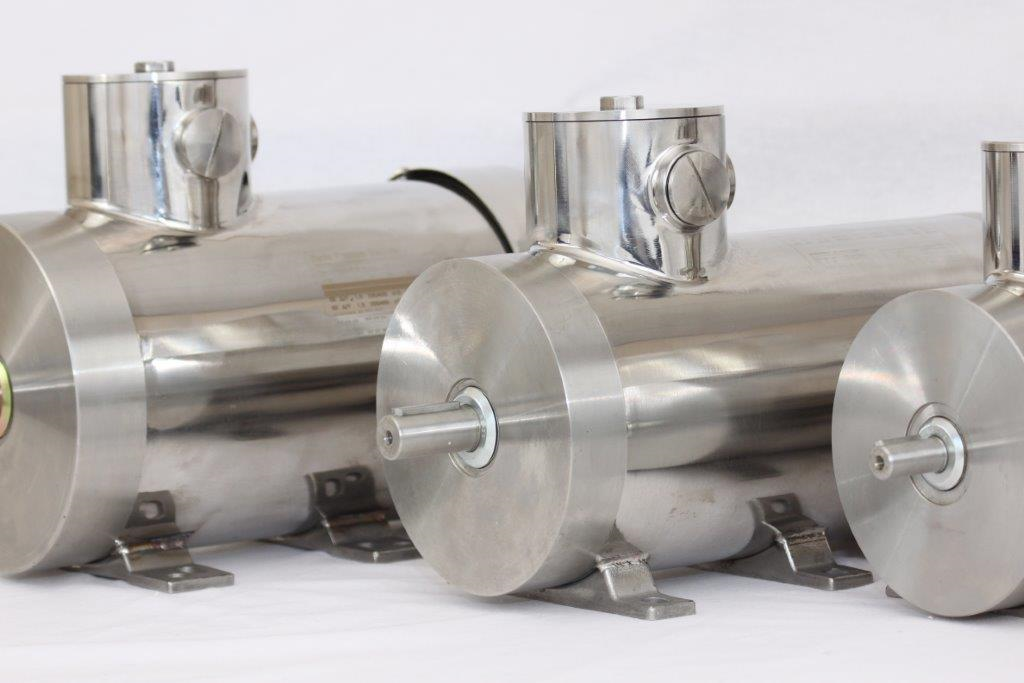

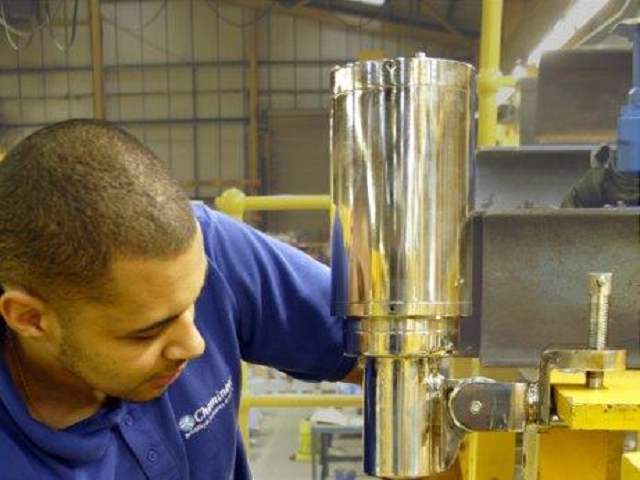

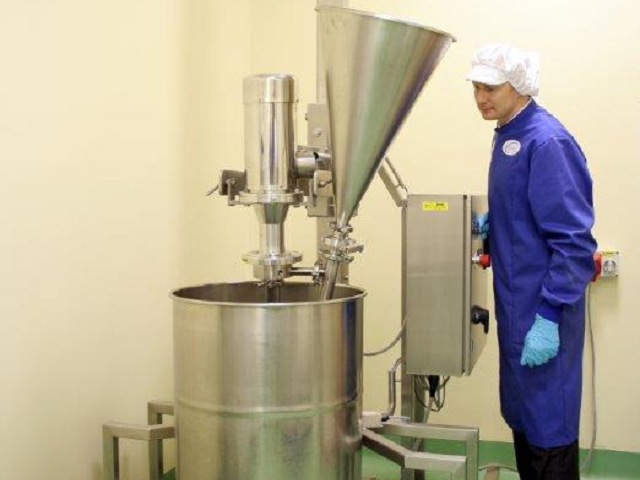

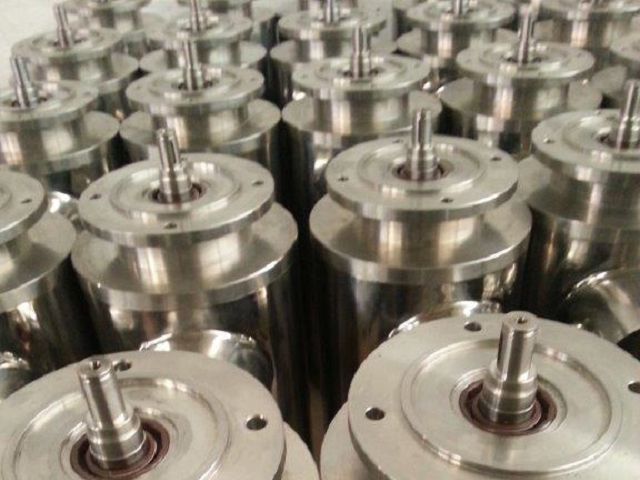

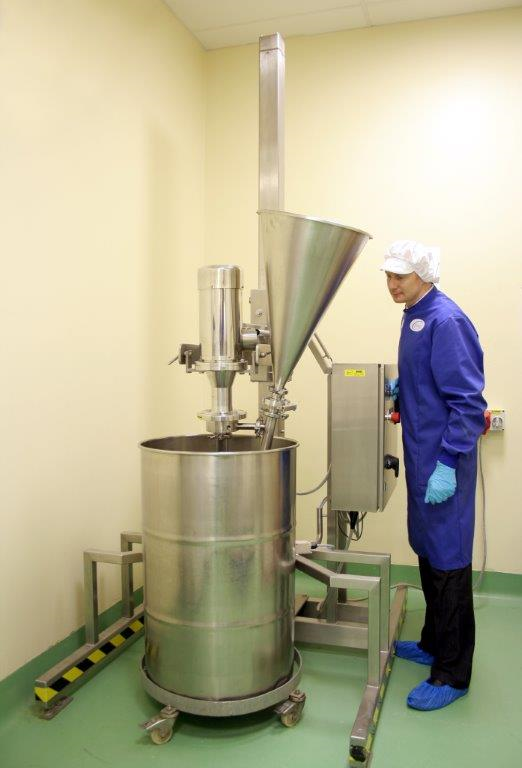

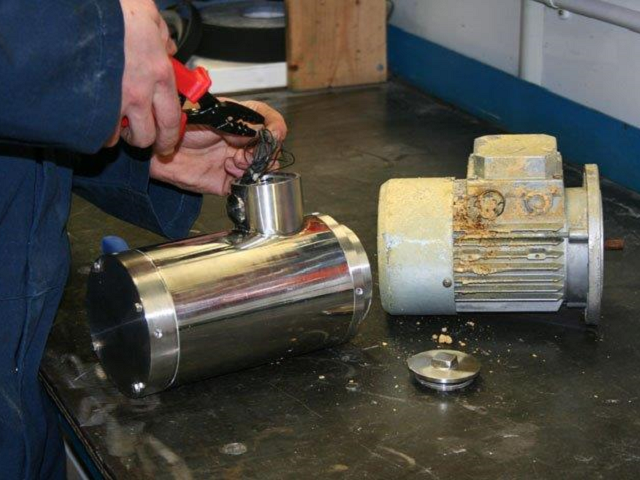

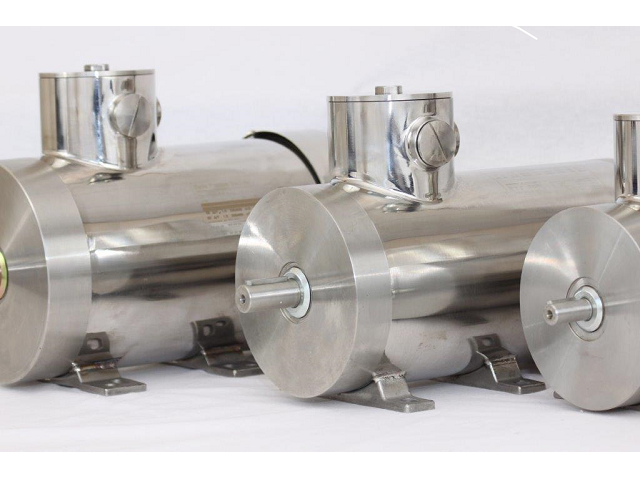

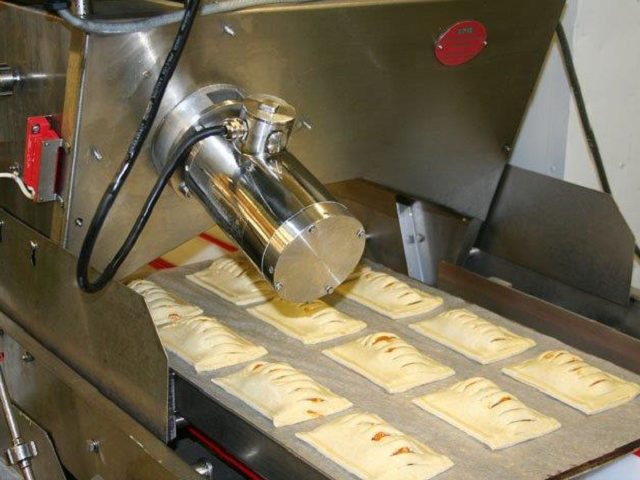

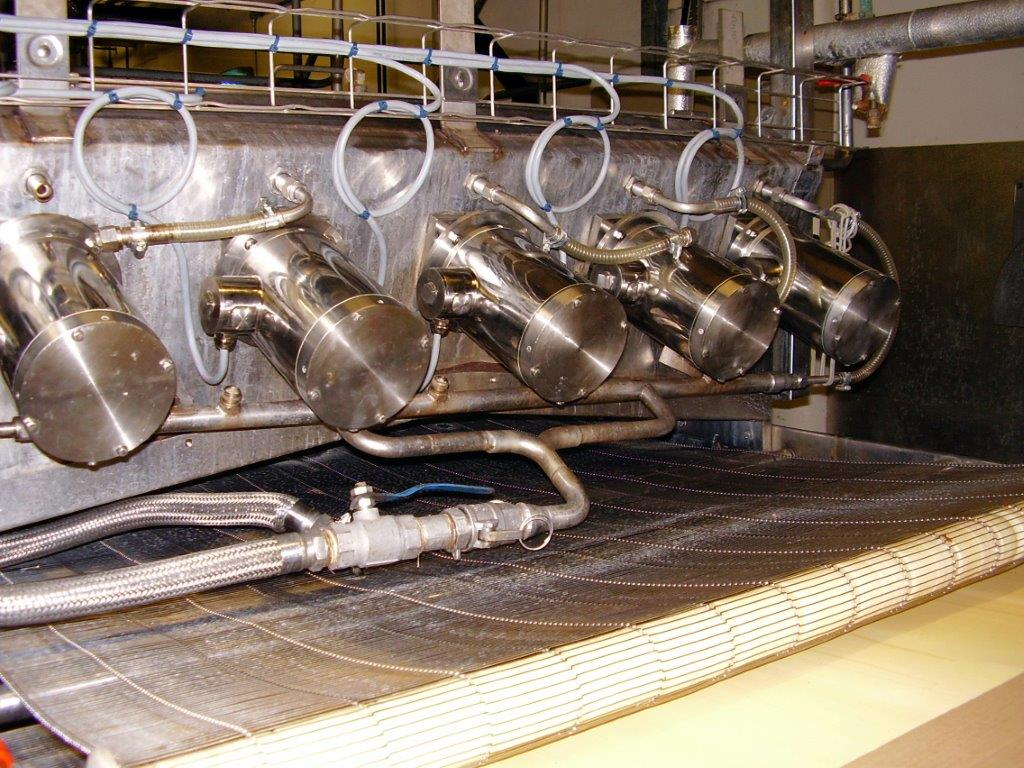

PHOTO GALLERY

Photographs from our archive.

.

Please provide valid email address.

DOWNLOADS

Brochures and other downloadable materials.

brochure Marlin Stainless Brochure
gearless Marlin Gearbox Brochure
advert Latest Marlin Advert
advert Connection Guide

.

Please provide valid email address.

INVERTERS

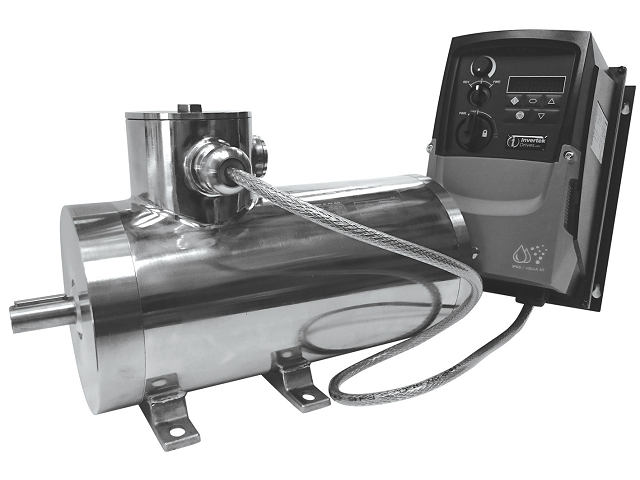

We can offer an IP66 rated inverter range. Further information available on request.

.

Please provide valid email address.

NEWS

We love to 'Show' off our motors!

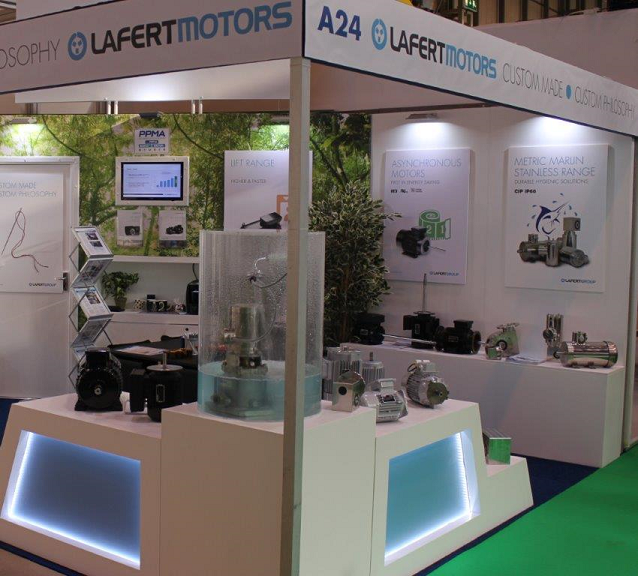

We will be exhibiting our motors at the PPMA show 2019 (Oct 1st-3rd @ Birmingham's NEC).

Amongst the stars on our stands will of course be the ‘Marlin’ range of stainless steel motors, together with compatible stainless worm, helical gear and in-line gearboxes.

In addition, there will be examples of our high performance, permanent magnet HP motors, AC motors, brake motors, brushless servo and torque motors, gearless permanent magnet lift motors and power electronics.

Our stand number is A24.

We look forward to seeing you there.

In the meantime, should you require any further information or assistance please do not hesitate to contact us on 01270 270022 or by email: lafertuk@lafert.com

image0x

.

Please provide valid email address.

CONTACT US

Please get in touch to discuss your electric motor needs.

Loading map...

Get In Touch

Please enter name.
Please enter valid email address.
Please enter your comment.

Unit 17, Orion Way, Crewe, Cheshire, CW1 6GL

lafertuk@lafert.com

Tel : +44 (0)1270 270022

Fax : +44 (0)1270 270023
